Specifications

L.O.A.
Beam
Hull Draft (Engines Up)
Hull Draft (Engines Down)
*Clearance w/Hardtop (from Waterline)
With Radar

37′ 1″ (11.30 m)
13′ 8″ (4.17m)
2′ 3″ (0.69 m)
3′ 5″ (1.04 m)
9′ 9″ (2.97 m)
10′ 5″ (3.18 m)

Approximate Dry Weight
(Twin M600 engines)
**Fuel Capacity
Fresh Water Capacity
Holding Tank Capacity
Max. Horsepower


22,400 lbs (10,160 kg)
510 U.S. gallons (1,930 L)
52 U.S. gallons (197 L)
15 U.S. gallons (57 L)
1200 hp (895 kw)

*Hardtop Clearance shown does not include options which could increase this height dimension.

**Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors can affect the usable fuel capacity by approximately 10%.

Hull Color Options

INTRACOASTAL BLUE

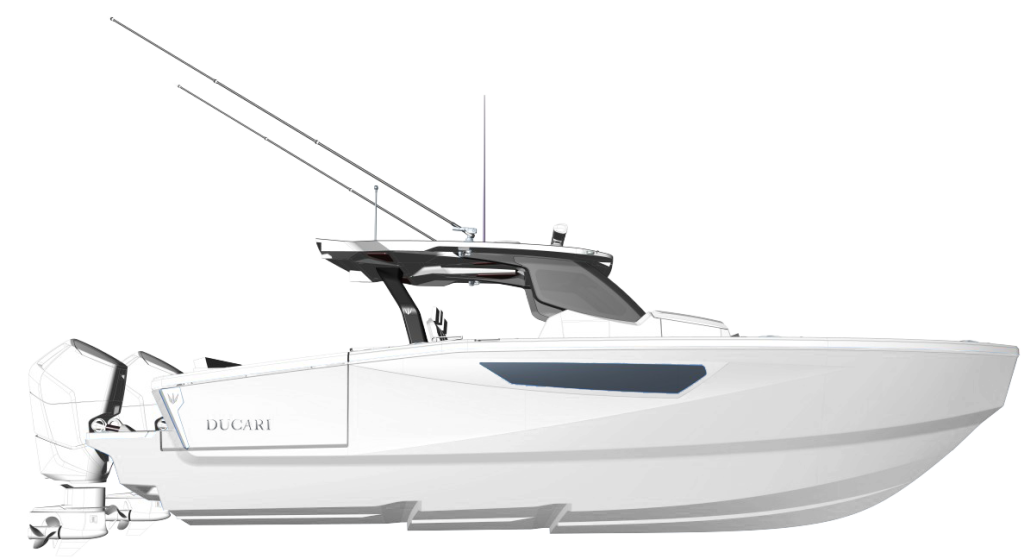

COASTAL WHITE

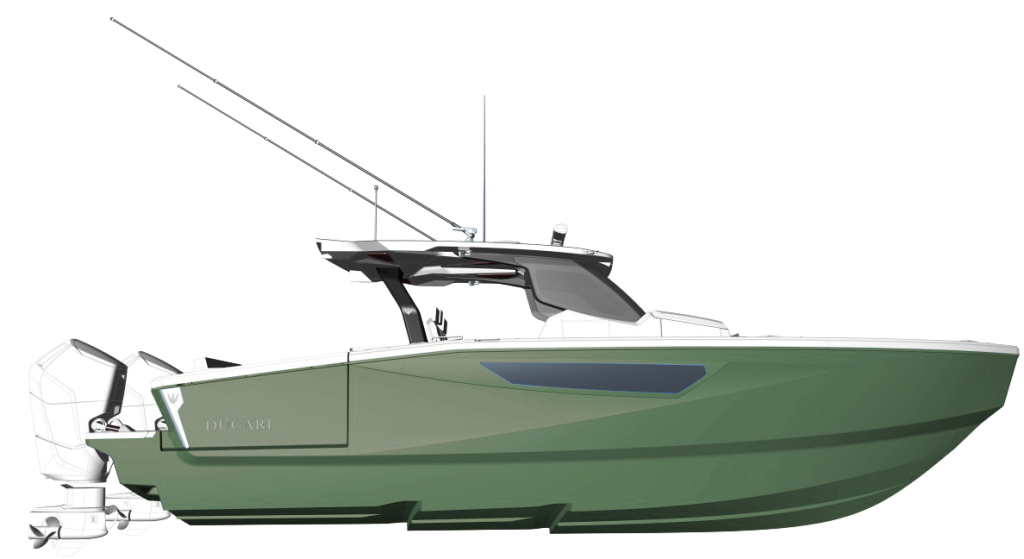

ATLANTIC GREEN

SANDBAR TAN

Standard Equipment

HULL AND DECK

  • Ducari Protection Plan
    • 2 Year limited component warranty
    • 10 Year transferable hull warranty
  • Hand laminated hull with engineered fabrics
  • Fiberglass structural grid system with integrated bilge water management system
  • Ducari twin stepped hull design
  • Anchor windlass with helm switch and remote
  • 316 SS through stem anchor roller with mooring cleat, with SS backing plate
  • 316 SS plow style anchor, twist shackle, 20′ of chain and 300′ of 5/8″ rope
  • Bronze thru hull fittings below water line
  • SS thru hull for high speed pick up and sea chest
  • SS thru hull fittings above the waterline
  • Bronze garboard drains
  • Four (4) 2000 GPH bilge pumps with integrated float switches
  • High density, 1-7/8″ thick rub rail
  • One (1) SS heavy duty bow eye
  • Two (2) SS heavy duty stern eyes
  • Four (4) underwater lights (blue/white)


DECK AND COCKPIT FEATURES

  • Molded hull side dive/boarding door (port side)
  • Hull side electrically actuated balcony (starboard side)
  • Molded one-piece, single level deck with molded non-skid pattern, synthetic decking, and overboard drains
  • Hull and deck joint chemically bonded and mechanically fastened
  • 10″ pop up stern cleats (2), 10″ pop up spring cleats (4), and 10″ pop up bow cleats (2)
  • Molded and recessed gasketed hatches with 316 SS latches and overboard drain system
  • Flush mounted integral anchor locker lids with fiberglass lid and gas springs
  • Three-piece 1 1/2″ welded 316 SS recessed bow grab rail
  • 316 SS concealed fuel fill deckplates with separate water fill and waste pump out
  • Four (4) 316 SS rod holder/ drink holder combos in gunwale
  • 316 SS with acrylic walk through safety gate
  • Large swim platform with synthetic decking
  • Ducari custom four-step swim platform boarding ladder with grab rail
  • Ducari custom upholstery
  • Premium entertainment system including Bluetooth® compatible stereo system, digital amplifiers, four (4) hard-top speakers, two (2) speakers aft and one (1) 12″ subwoofer. Bow area includes four (4) speakers with two (2) 10″ subwoofers
  • Lighted 31 gallon recirculating livewell with solid
    surface lid and dual aquarium style glass windows
  • Concealed aft facing mezzanine seating with armrests
  • Convertible forward/aft facing transom seat with insulated storage and overboard drainage system
  • Two (2) custom tables with dedicated storage
  • Two (2) cockpit machinery access hatches with finished liners
  • Ventilated electronics room with access hatch and steps
  • Transom hot and cold pull-out shower
  • Raw water outlet in cockpit with quick connect fittings
    and 25′ hose
  • Freshwater outlet in cockpit with quick connect fittings
  • LED cockpit accent lights
  • Entertainment area includes:
    • 120V/60Hz cockpit grill
    • Sink with hot and cold water
    • AC/DC powered, 2.3ft³ stainless steel drawer refrigerator with custom decorative panel
    • Two (2) trash receptacles
    • Four (4) LED cupholders
    • Drawer storage
    • One (1) 120V outlet with dual plug in

BOW AREA

  • Molded entertainment center including sink with hot and cold water, insulated ice bin with Corian lid, LED cupholders (4), pop up light, and one (1) 120V outlet with dual plug in
  • Seven (7) 316 SS cupholders in bow area
  • Four (4) speakers with two (2) 10″subwoofers
  • Two (2) removable tables with dedicated storage
  • Raw and freshwater washdown in anchor locker with quick connect fittings
  • Two (2) dual port USB-C outlets
  • Wireless cellphone charging pad
  • Wrap around bow seating with double wide starboard lounge seat
  • Oversized storage under port seat
  • Insulated storage below center seat
  • Insulated in-floor storage (starboard side)
  • Dedicated fender storage compartment
  • Three (3-4) fenders, 10″ diameter with dedicated quick release pin mounts
  • Four (4) 316 SS rod holders in bow area
  • LED bow accent lights

WALK IN STORAGE GARAGE

  • Dedicated storage for four (4) rods with synthetic backing for protection
  • Synthetic flooring
  • Engine key switches
  • Multifunction distribution panel
  • Lockable side pantograph access door
  • Electrically actuated carbon fiber hatch with tempered laminated glass
  • One (1) 120V outlet with dual plug in
  • Overboard drains for easy cleaning
  • LED lighting
  • Dedicated table storage

HARDTOP

  • Carbon fiber hardtop with single-leg carbon fiber support
  • Carbon fiber windshield frame with tempered glass
  • Port and starboard LED navigation lights
  • Electrically actuated combination anchor/stern and
  • LED all-around navigation light
  • Six (6) white LED hardtop lights, two (2)
    red/blue/white helm lights
  • Six (6) spreader lights
  • One (1) forward facing light bar
  • Electrically actuated VHF Antenna
  • Custom integrated stainless steel retractable electric sunshade

HELM

  • Molded fiberglass and billet aluminum helm with concealed storage
  • Dual console footrest
  • Forced air ventilation
  • Simrad® Electronics
  • 1kW thru-hull transducer
  • Three (3) Simrad 22″ multi-touch monitors
  • Simrad VHF marine radio
  • Ducari IntelliTouch system™
  • Enhanced digital switching and boat controls
  • NMEA 2000-based switching
  • Ducari custom steel steering wheel with custom leather wrapping mounted on a tilt helm
  • Twin windshield wipers w/freshwater wash
  • Mercury® digital controls, (DTS) joystick piloting w/skyhook and autopilot Skyhook®
  • Helm seating for four (4) with foldable armrests,
  • Captain’s chair with electrically actuated fore/aft and vertical adjustment
  • Foldout riser for helm visibility
  • Compass
  • Two (2) wireless chargers, one (1) dual port USB-C outlet
  • 120V/60Hz, 12,000 BTU air conditioning with reverse cycle heat
  • AC ventilation in seat backs
  • Three (3) 316 SS cupholders

CABIN INTERIOR

  • Molded fiberglass access door with gasket and 316 SS locking latch
  • Three (3) switch panel (overhead, step, and accent lights)
  • Cabin entry steps with leather wrapped handrails
  • Molded cabin deck liner and head liner
  • Berthing accommodations for two
  • Port and starboard windows with privacy treatments
  • Opening portlight (starboard)
  • Custom LVP flooring
  • One (1) wireless charger
  • One (1) Dual port USB-C outlet
  • One (1) 120V outlet with dual plug in CO monitor
  • Storage under berth
  • Bluetooth® sound bar
  • Dedicated 6,000 BTU 120V/60Hz interior cycle air conditioning with reverse cycle heat

ENCLOSED HEAD

  • Electric marine head with 15 gallon holding tank and macerator discharge pump
  • Designer sink with solid surface countertop, hot/cold freshwater faucet and vanity mirror
  • Two door storage cabinets under sink
  • Switch panel with overhead LED lights
  • Hanging locker
  • AC vent
  • Hot/Cold shower with curtain
  • One (1) 120V outlet with dual plug in
  • Linen locker

ELECTRICAL ROOM AND SYSTEMS

  • Unified electrical room housing batteries, chargers,
    and electrical systems
  • UL® rated fully tinned, color-coded copper wire
  • Heat sealed, mechanically crimped, color-coded battery cables
  • Fully split loom protected electrical harness with waterproof connectors
  • Electrically bonded system to zinc anodes
  • Single 240V/50A, split phase dockside power
  • One 50′ dockside power cord 50A
  • Dual bank 35A charger for cranking batts, two (2) 160A chargers for lithium house bank
  • Four battery system: port engine (1), starboard engine (1), house (2)
  • Electronics fuse blocks (5)
  • House lithium battery system with two (2) batteries

MECHANICAL SPACE

  • Molded interior liners with white gel coat
  • Molded hatch with gasket and SS gas springs
  • Two (2) high-water alarm float switches (per side)
  • Fresh water pump with filter
  • 5-gallon hot water heater
  • Raw water pump with sea strainer
  • Engine flushing system
  • Seachest with acrylic lid and dedicated high speed pickup

FUEL SYSTEM

  • Two (2) EPA compliant 255-gallon aluminum fuel tanks with digital level indicators
  • Two (2) Mercury® water separating fuel filters

CUSTOMIZE YOUR DUCARI 37XIV

ENGINE OPTIONS
Mercury Twin 600XXXL (Black) w/Joystick (D37)
Mercury Twin 600XXXL (CF White) w/Joystick (D37)

GELCOAT COLORS
Coastal White (Standard)
Atlantic Green, Full Hull (D37)
Sandbar Tan, Full Hull (D37)
Intracoastal Blue, Full Hull (D37)

INDIVIDUAL UPGRADES
Air Pump Station (D37)
Bow Mediterranean-Style Sunshade (Stowable, Black) (D37)
Cockpit/Balcony Shower Tower (D37)
Glendinning 50A Split-Phase Shore Power Reel with Remote (D37)
Lithium Battery Upgrade: 2 Additional 460 Amp-Hour Lithium Batteries
Marine Mat Deck Flooring: (69pc) Kit for Entire Boat, Bow to Stern
Gemlux® Bluewater Outriggers w/22′ Carbon Fiber Telescoping Poles

CANVAS
Canvas Package (Bow Tonneau Cover, Instrument Cover, Aft Seat Cover)

ELECTRONICS
Simrad® Radar HALO-4 (48″ Open Array) (D37)
